OpenSearch

Connecting an AWS OpenSearch service to a DevZero workspace.

Connecting to OpenSearch running in the private subnet of AWS VPC from your DevBox.

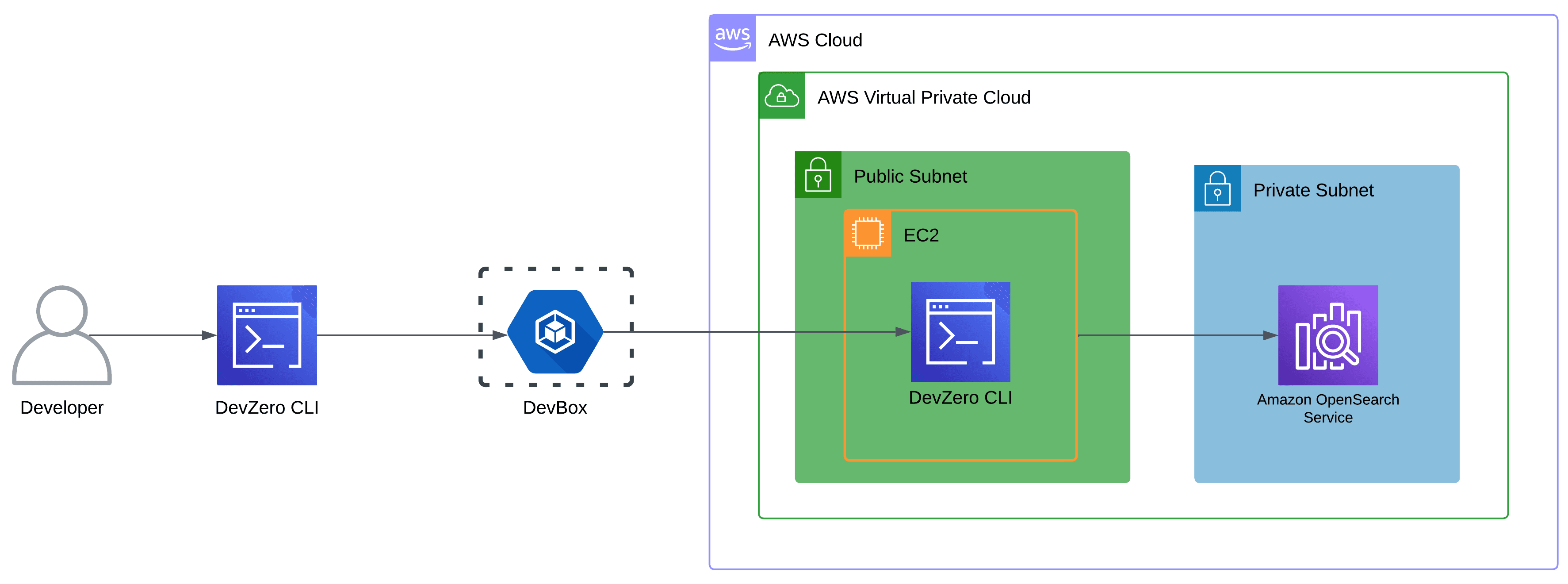

Architecture Diagram

AWS OpenSearch Architecture

Prerequisites

Existing OpenSearch Service

Step 1: Accessing OpenSearch from a DevBox

  1. Go to Amazon OpenSearch Service > Domains.
  2. Select your domain and copy your Domain Endpoint.

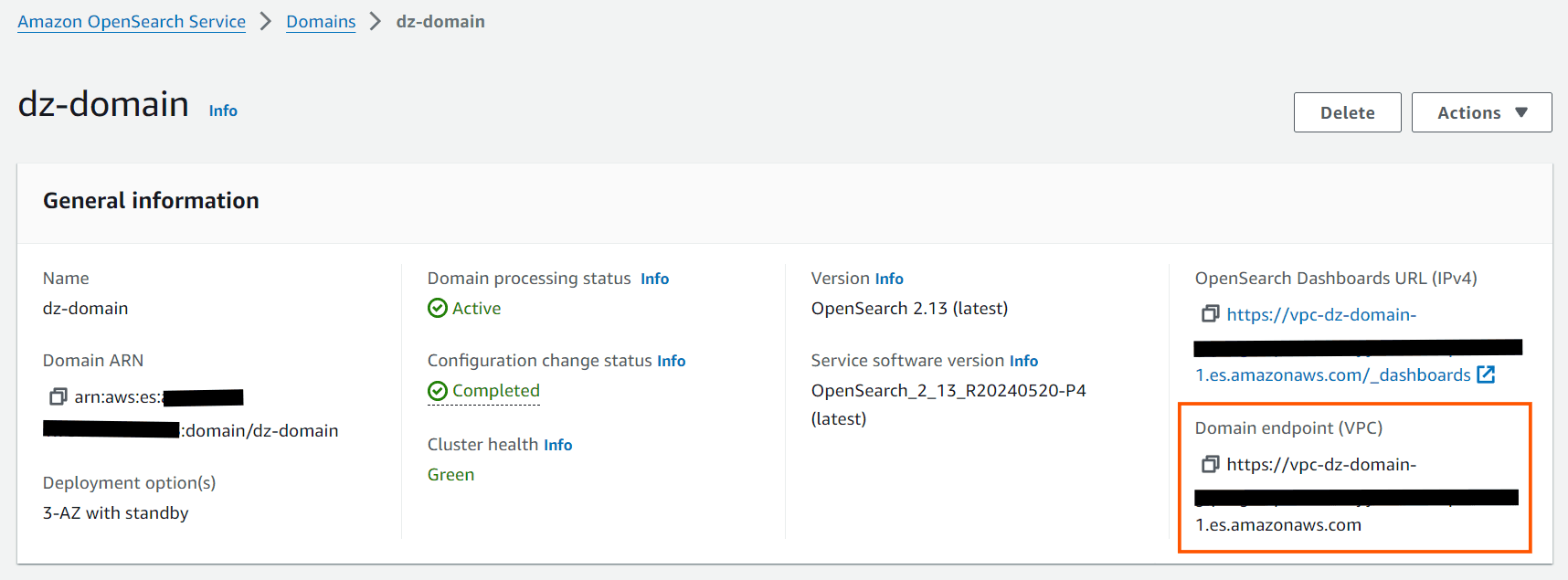

AWS OpenSearch Endpoints

  1. Go to your DevBox and connect to Service:
curl -X GET "<opensearch-endpoint>"

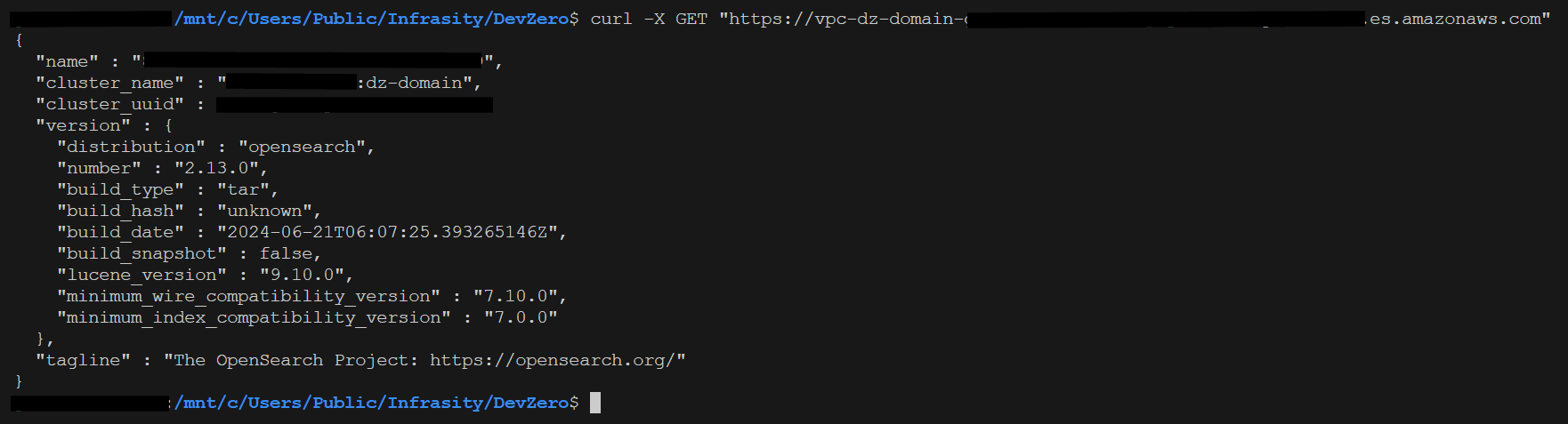

AWS OpenSearch Access

New OpenSearch Service

Step 1: Creating an OpenSearch Service

  1. Go to Amazon OpenSearch Service > Create domain.
  2. Give a unique Domain name.
  3. Select Standard create in the Creation method.
  4. Use the default configurations for creating the service.
  5. Keep the Data nodes according to your requirements.
  6. Go to Network section and choose your VPC and Subnets.
  7. In the next section, choose the Security Group. Make sure the specified Security Group allows inbound connection from the VPC
  8. Click on Create.

Step 2: Accessing OpenSearch from DevBox

  1. Go to your OpenSearch and copy Domain endpoint.

AWS OpenSearch Endpoints

  1. Go to your DevBox and connect to Service:
curl -X GET "<opensearch-endpoint>"

AWS OpenSearch Access
