EKS (Elastic Kubernetes Service)

Connecting an EKS cluster to a DevZero workspace.

Connecting to EKS running in the private subnet of AWS VPC from your DevBox.

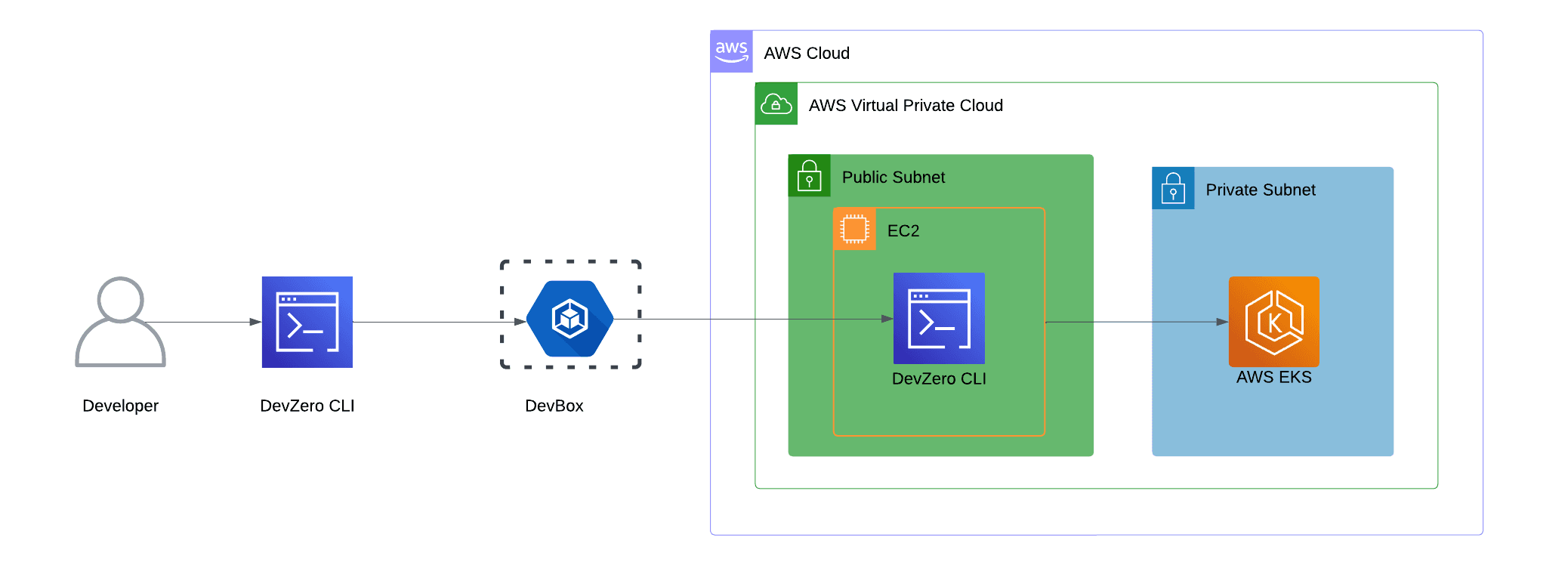

Architecture Diagram

AWS EKS Architecture

Prerequisites

Existing EKS

Step 1: Accessing EKS from a DevBox

  1. Go to Amazon Elastic Kubernetes Service > Clusters.
  2. Go to your DevBox and install awscli:
sudo apt install awscli
  1. Download the kubectl binaries:
curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
  1. Install kubectl:
sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl
  1. Check if the cluster is accessible:
kubectl get svc

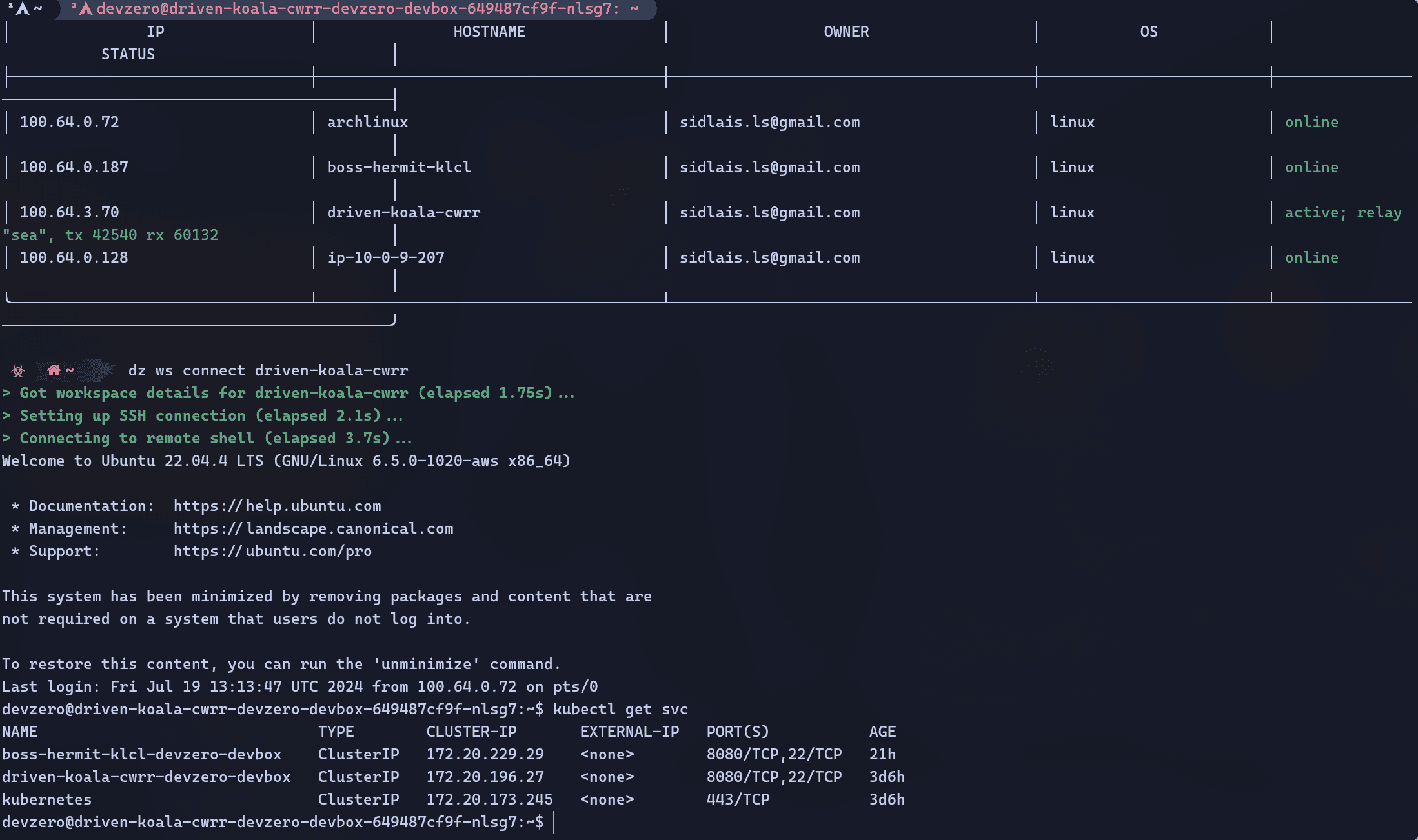

AWS EKS Access

New EKS Cluster

Step 1: Creating a EKS Cluster

  1. Go to Amazon Elastic Kubernetes Service > Clusters > Add cluster > Create.
  2. Enter the name of the cluster and assign a Cluster service role which has AmazonEKSClusterPolicy permission. If no role is present, create a new one with the same permission.
  3. Click on Next. In the Networking section, choose the VPC where your bastion host is deployed and assign 2 private subnets. In Cluster endpoint access, select Private.
  4. Configure other configurations as required and then create the cluster. After creating the cluster, go to the compute section and under Node groups click on Add node group.
  5. Enter the name of the node group and assign a node IAM role with AmazonEC2ContainerRegistryReadOnly, AmazonEKS_CNI_Policy and AmazonEKSWorkerNodePolicy permissions. If no role is present, create a new one with the same permissions.
  6. Configure other configurations as required and create the nodes.

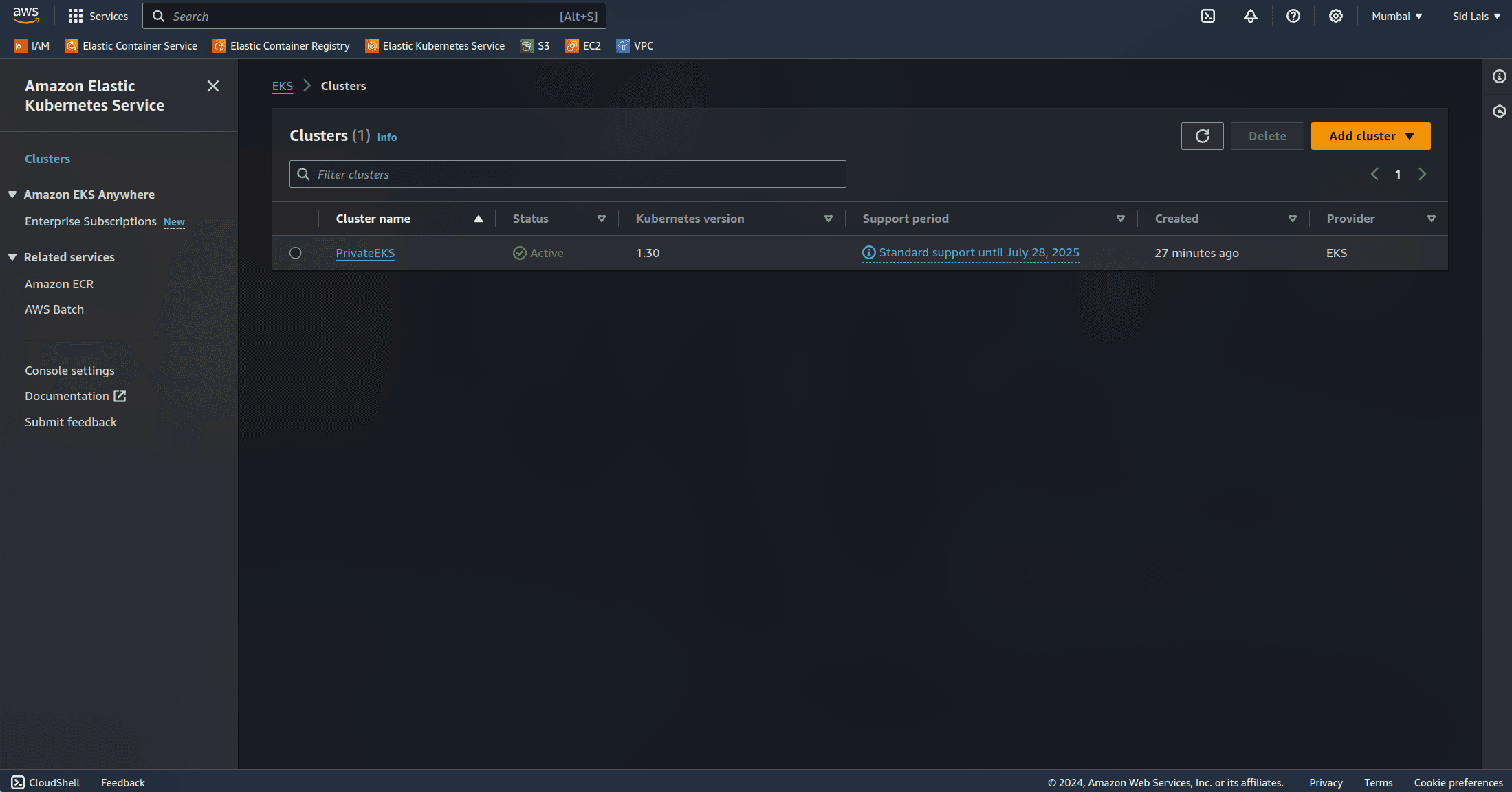

AWS EKS Cluster

Step 2: Installing the necessary tools

  1. Go to your DevBox and install awscli:
sudo apt install awscli
  1. Download kubectl binaries:
curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
  1. Install kubectl:
sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

Step 3: Accessing the EKS Cluster

  1. Click on your AWS username at the top right corner and go to Security credentials. In the Access keys section, click on Create access key. Create the key and save the CSV file.
  2. In your DevBox, use the csv credentials to configure the awscli to your account:
aws configure
  1. Check if the cluster is accessible:
kubectl get svc

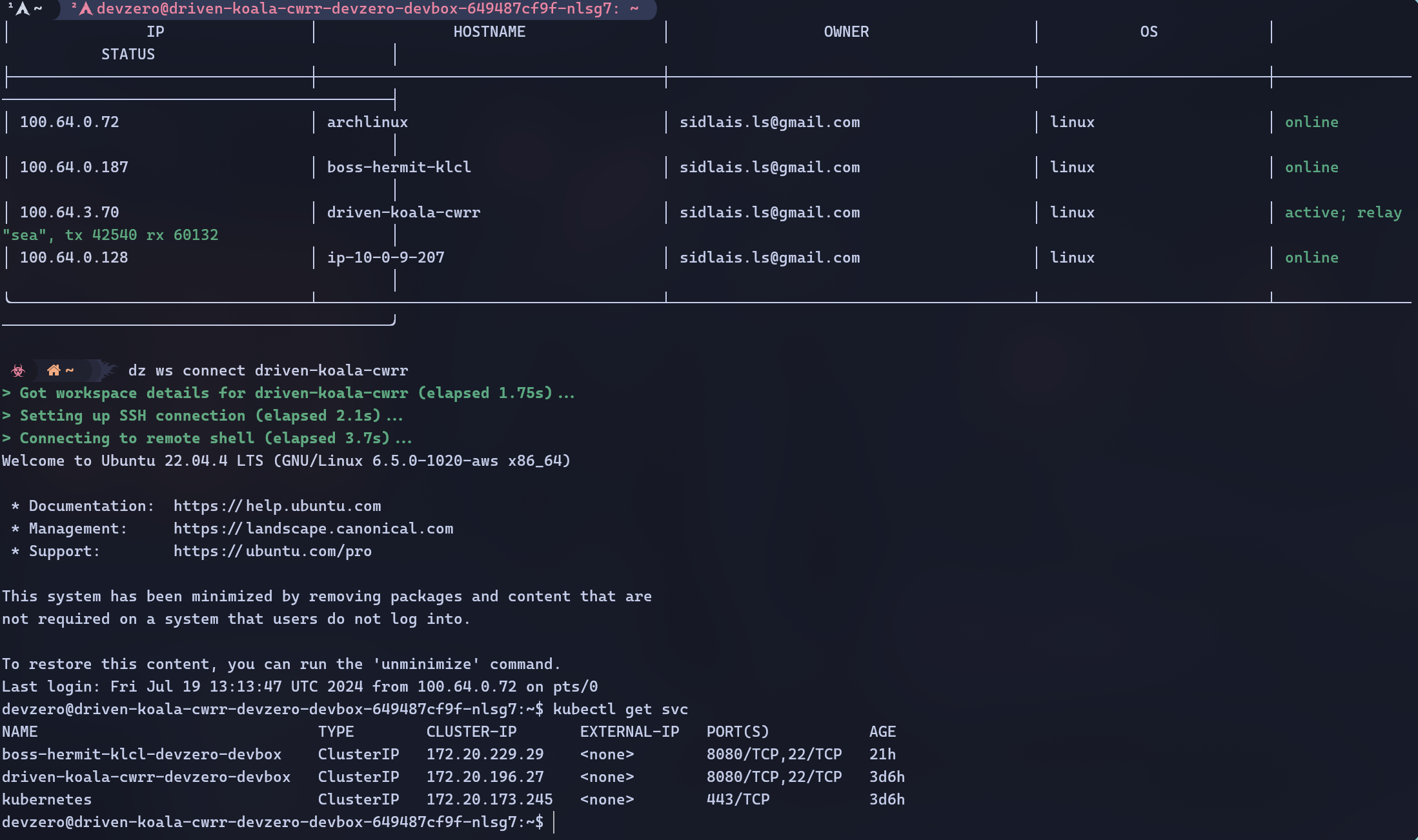

![AWS EKS Access](/assets/docs/eks-access.png)
