DocumentDB

Connecting a DocumentDB cluster to a DevZero workspace.

Connecting to DocumentDB running in the private subnet of AWS VPC from your DevBox.

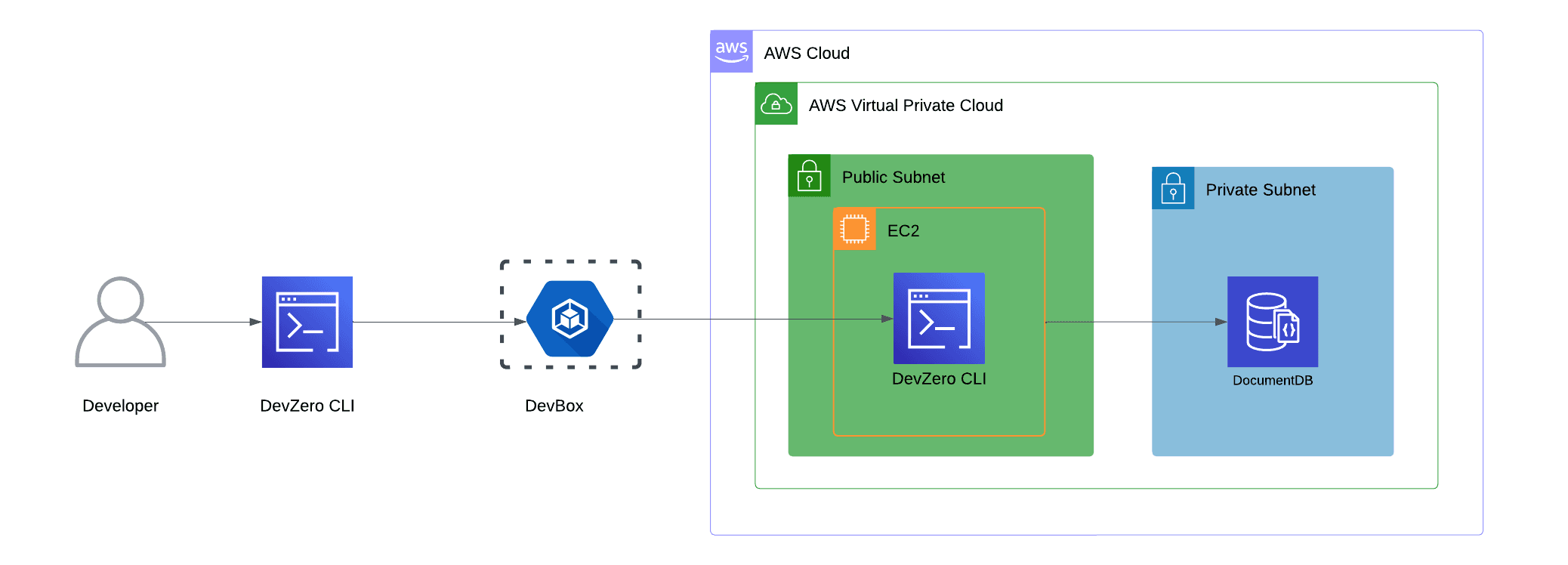

Architecture Diagram

DocumentDB Architecture

Existing Database

Step 1: Accessing DocumentDB from a DevBox

  1. Follow the Connecting to AWS guide.
  2. Go to Amazon DocumentDB > Clusters > Your Cluster.
  3. Select Connectivity & Security. You will see the commands and DocumentDB hostname for accessing it.

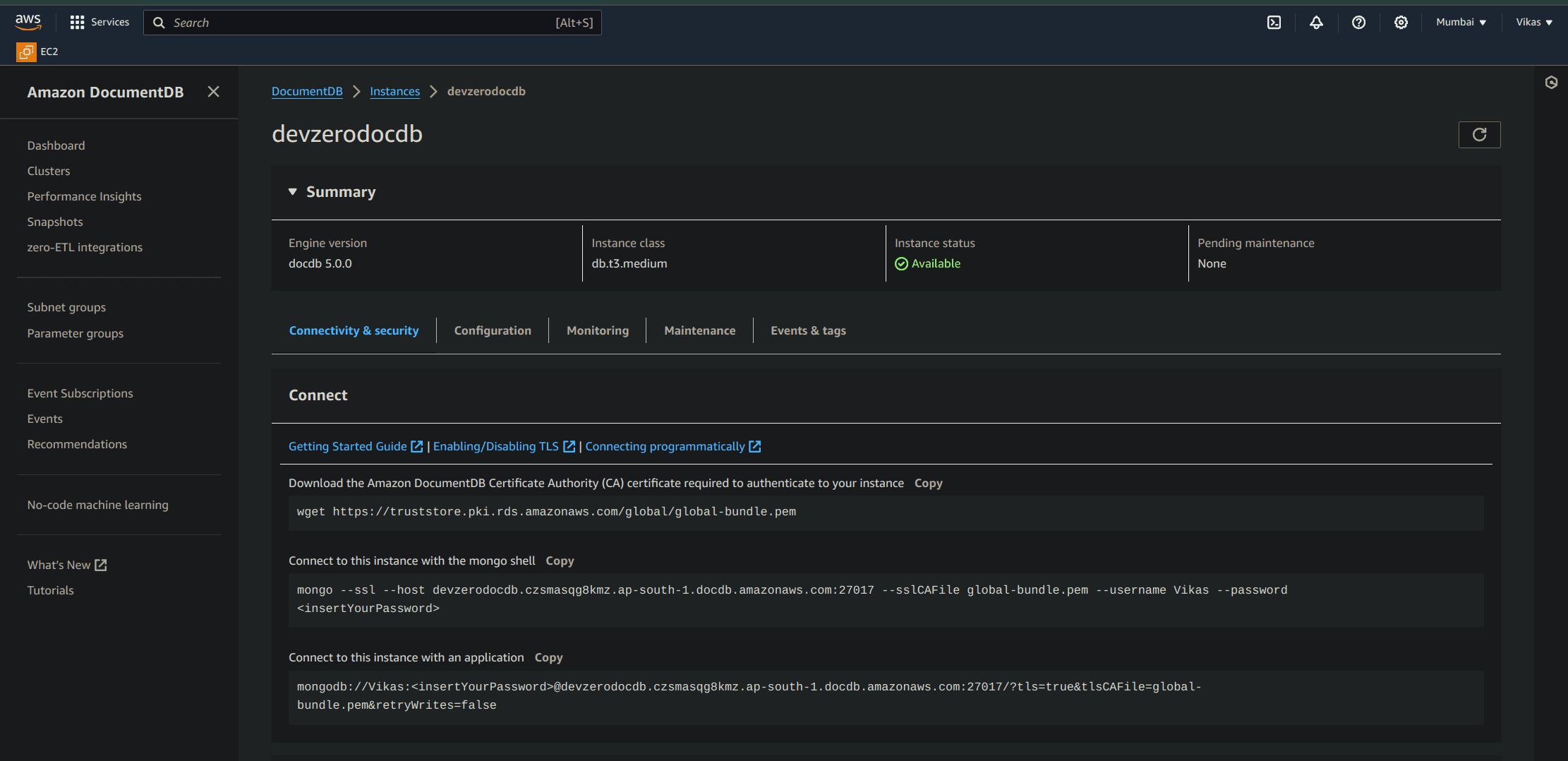

DocumentDB Connectivity and Security

  1. In your DevBox, import the MongoDB public GPG key:
curl -fsSL https://www.mongodb.org/static/pgp/server-7.0.asc | \
   sudo gpg -o /usr/share/keyrings/mongodb-server-7.0.gpg \
   --dearmor
  1. Add MongoDB package repository source:
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-7.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/7.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-7.0.list
  1. Reload local package database:
sudo apt-get update
  1. Install MongoDB:
sudo apt-get install -y mongodb-org
  1. Download the certificate:
wget https://truststore.pki.rds.amazonaws.com/global/global-bundle.pem
  1. Connect to the database:
mongosh --tls --host <your-cluster-endpoint>:27017 --tlsCAFile /path/to/global-bundle.pem --username <your-username> --password <your-password>

where the cluster endpoint will be available in Connectivity & Security section.

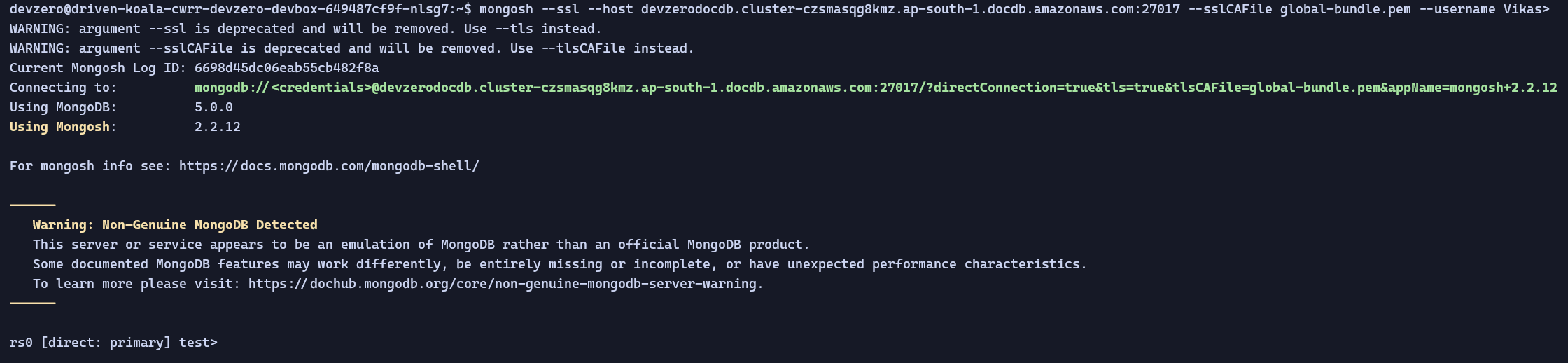

DocumentDB Access

New Database

Step 1: Creating a DocumentDB Instance

  1. Follow the Connecting to AWS guide.
  2. Go to Amazon DocumentDB > Create Cluster.
  3. Select Instance Based Cluster.
  4. In the Configuration section choose Instance Class, number of instances for your cluster.
  5. Set Username and Password.
  6. Turn on Show advanced settings.
  7. In the Network settings , choose the VPC where your bastion host is running, subnet group and assign a security group which has inbound access to only VPC.
  8. Click Create cluster.

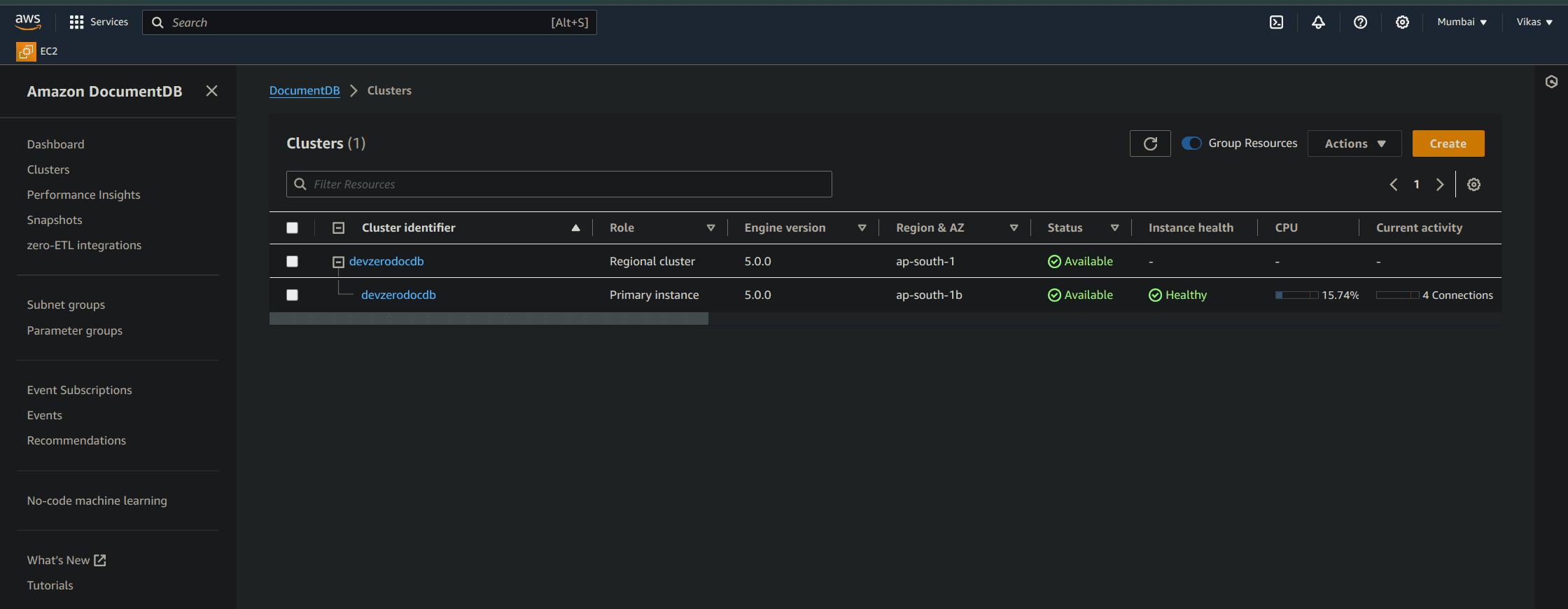

DocumentDB Cluster

Step 2: Accessing DocumentDB from a DevBox

  1. In your DevBox, import the MongoDB public GPG key:
curl -fsSL https://www.mongodb.org/static/pgp/server-7.0.asc | \
   sudo gpg -o /usr/share/keyrings/mongodb-server-7.0.gpg \
   --dearmor
  1. Add MongoDB package repository source:
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-7.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/7.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-7.0.list
  1. Reload local package database:
sudo apt-get update
  1. Install MongoDB:
sudo apt-get install -y mongodb-org
  1. Download the certificate:
wget https://truststore.pki.rds.amazonaws.com/global/global-bundle.pem
  1. Connect to the database:
mongosh --tls --host <your-cluster-endpoint>:27017 --tlsCAFile /path/to/global-bundle.pem --username <your-username> --password <your-password>

where the cluster endpoint will be available in Connectivity & Security section.

DocumentDB Access
