DynamoDB

This guide explains connecting to an AWS DynamoDB service running on AWS infrastructure from your DevBox.

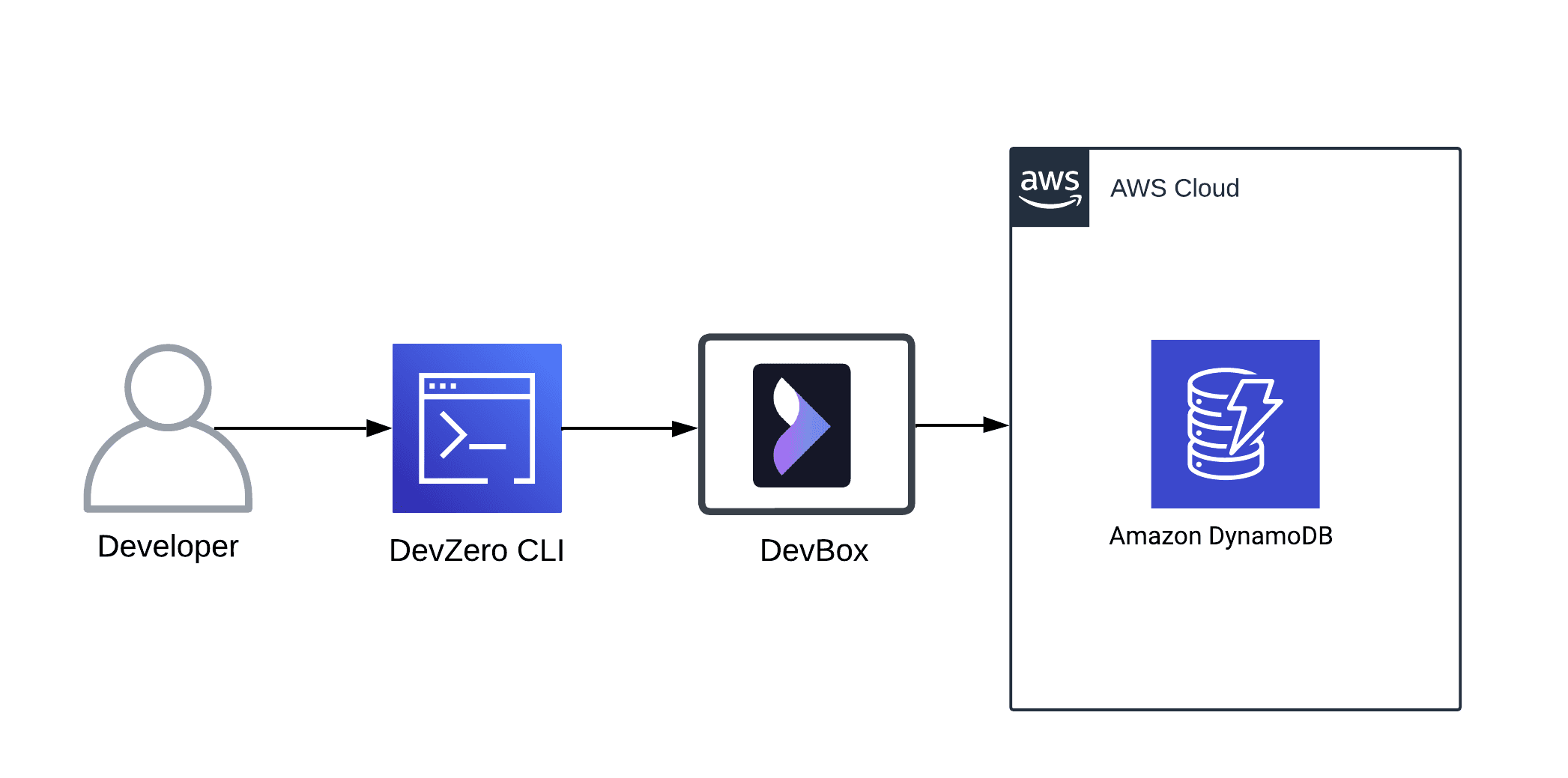

Architecture Diagram

AWS DynamoDB is a serverless, NoSQL, fully managed database. You will connect through the aws cli tool by first authenticating into your AWS Cloud account and then accessing the contents of the DynamoDB Service.

DynamoDB Service

If you already have a DynamoDB, you can follow the steps below to access its content from the DevBox.

Step 1: Creating a Recipe

First, we need to create a recipe for the workspace:

1. Go to the DevZero Dashboard > Recipes and click on New recipe.
2. Enter the recipe name and click on Create a recipe.
3. Now use the below-provided snippet to create a recipe for your workspace:

version: "3"
build:
  steps:
    - type: apt-get
      packages:
        [
          "build-essential",
          "curl",
          "git",
          "nano",
          "software-properties-common",
          "ssh",
          "sudo",
          "tar",
          "unzip",
          "vim",
          "wget",
          "zip",
        ]
    - type: command
      command: |
        curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
        unzip awscliv2.zip
        sudo ./aws/install

4. Click on Save and Build and when the build is successful, move on to the next step.

Step 2: Creating a Workspace

1. Go to the Devzero Dashboard > Workspaces by clicking New workspace.
2. Enter the workspace name and click on Select from recipe library.
3. Select the recipe you just created above and click on Select.
4. Click on Launch, and your workspace will be ready shortly.

Step 3: Setting up AWS CLI

Now, this is where the real task begins. After downloading the `aws' cli package, we will need to authenticate with our AWS account. To do so, follow the below steps:

1. Go to AWS Dashboard, and on the top right corner, click on the drop-down menu and select Security credentials.
2. Under the Access Keys section, click on Create Access Key and agree to the Terms and Conditions.
3. Click create access key and note down the Secret Access Key as this will only be shown once.
4. Go to your DevBox and use the following command to configure the aws cli:

aws configure

5. Enter the Access Key and Secret Access Key when prompted.
6. Enter your default Region of choice, and your aws cli setup will be completed.

Step 4: Accessing the Database Service

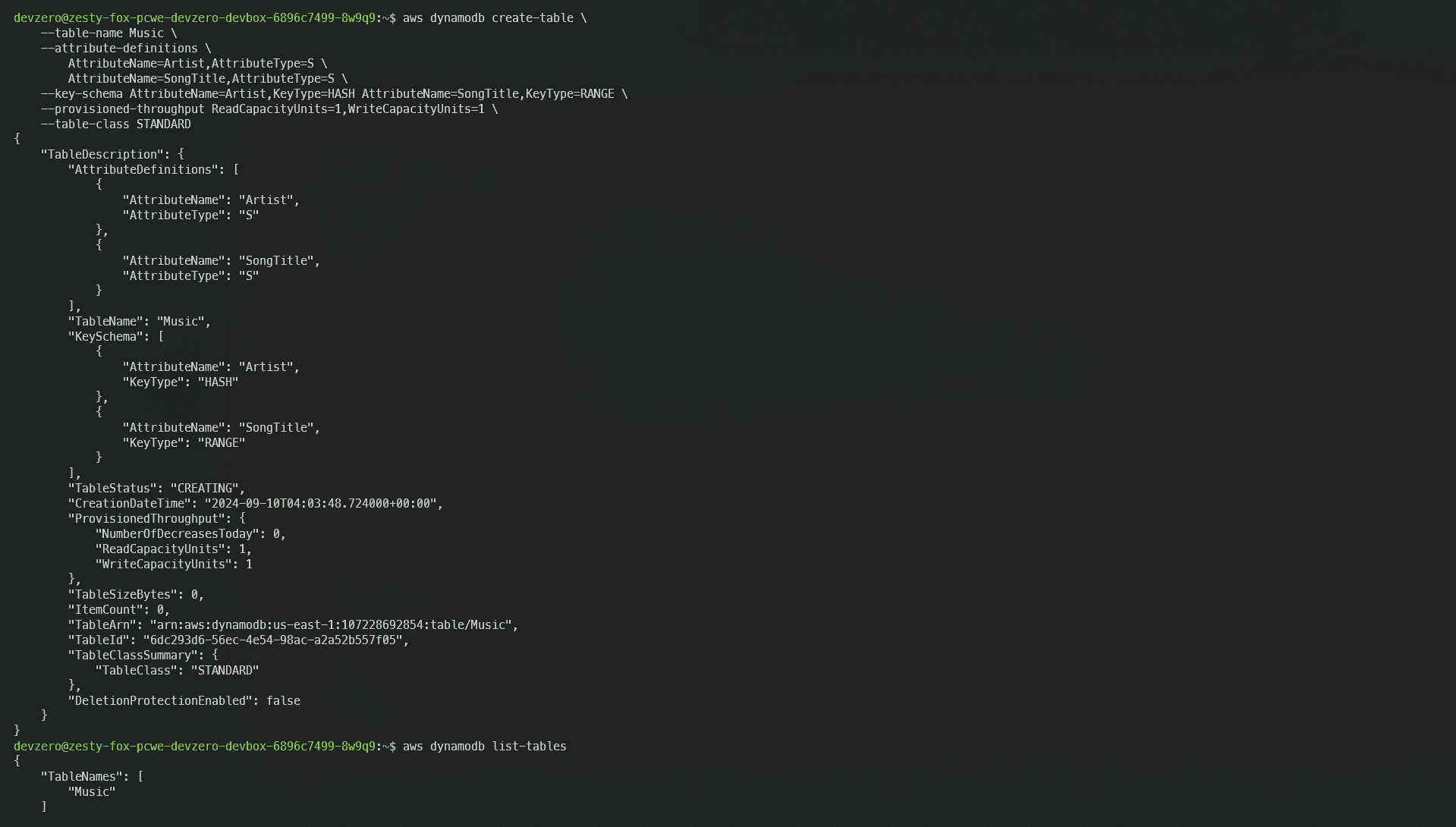

Now, with the above steps, your AWS DynamoDB connections are completed, and you can check that with the following command:

aws dynamodb list-tables
