GCP Compute Engine Instance

If you're more of a visual learner, check out the video tutorial!

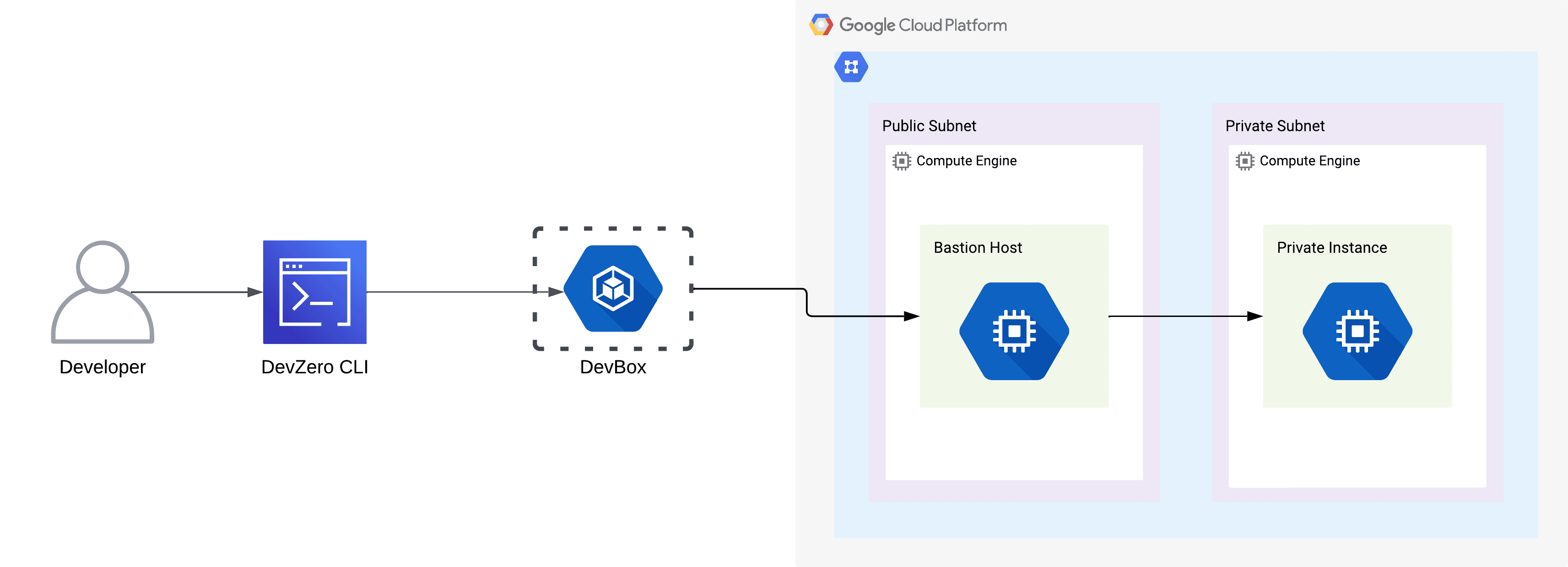

Architecture Diagram

Prerequisites

Follow Connecting to GCP guide.

Existing Compute Instance

Step 1: Accessing Compute Instance from a DevBox

1. Go to Compute Engine > VM Instances.
2. Click on SSH. You will see the commands for accessing it.
3. Go to DevBox and make a copy of the key pair.

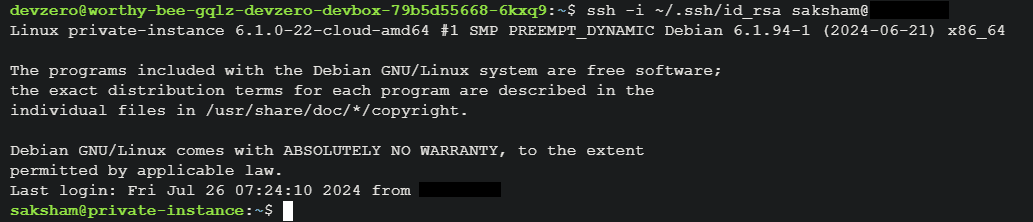

4. Connect to Compute Instance:

ssh -i "path/to/private/key" username@instance-ip

New Compute Instance Virtual Machine

Step 1: Creating an Compute Instance

1. Go to Compute Engine > Create Instance.
2. Enter the name of the instance along with region and machine type.
3. Use one of the supported linux distros.
4. Choose the Instance type.
5. Go to Advanced Options > Networking > Network Tags and enter the firewall tags.
6. Go to Advanced Options > Networking > Network Interfaces, click on Network and choose the VPC where your bastion host is running, then click on Subnetwork and choose the private subnet.
7. Copy the newly created SSH key pair once the instance is created.

Step 2: Accessing Compute Instance from a DevBox

1. Go to the DevBox and make a copy of the key pair.
2. Connect to the desired Compute instance using ssh and the new key pair:

ssh -i "path/to/private/key" username@instance-ip

Video Walkthrough
